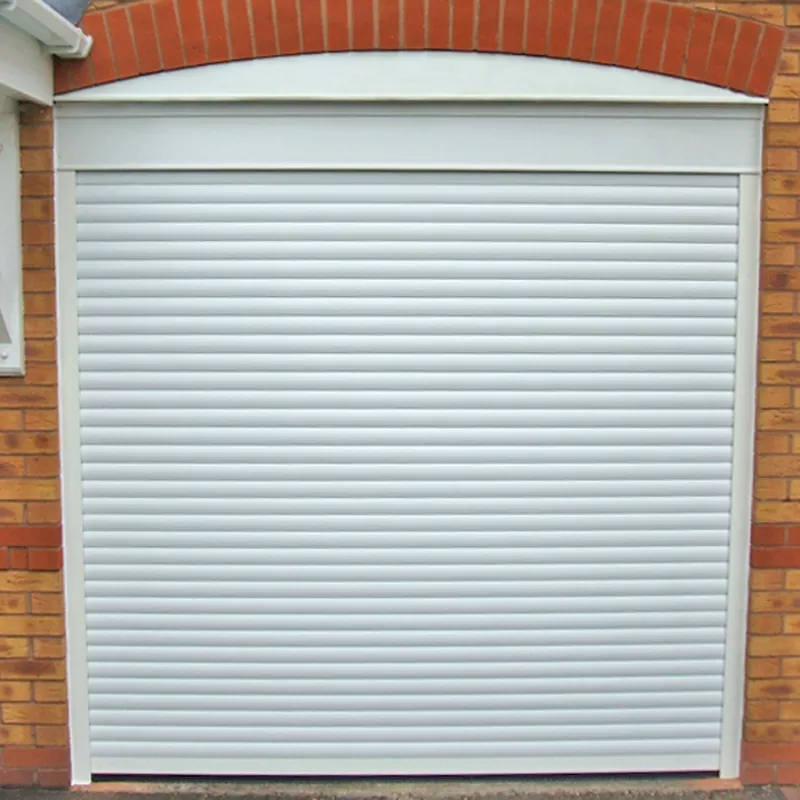

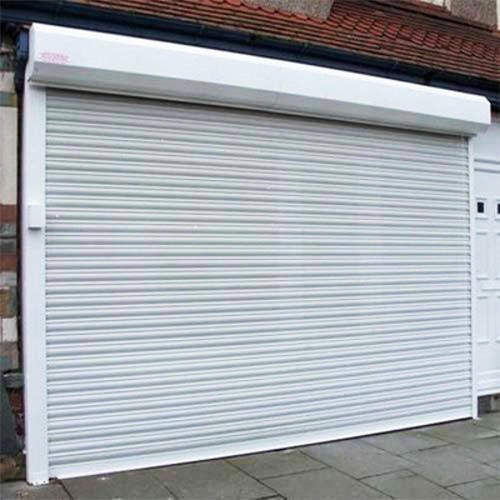

Powder Coated Motorised Rolling Shutters
- Bengaluru Enterprises manufactures and supplies a wide range of powder coated roller shutters that are suitable for both residential and commercial purposes. Its sturdy build and trouble-free operation have earned it widespread acclaim and demand. We manufacture a variety of powder coated roller shutters utilising high-quality raw materials to ensure a long service life. These are simple to use and install for a variety of purposes. We are at the pinnacle of India’s developing powder coated roller shutters manufacturers. A reputable powder coated roller shutters manufacturer can also create and supply its creative pattern, which can offer a charming touch to the complete application area.
- These shutters are made with innovative technology and high-quality raw materials. In addition, our personnel inspect these shutters on a variety of aspects to ensure that they operate well for our clients. The offered shutters are used to cover and secure things in garages, stores, and warehouses. Furthermore, the given powder coated roller shutters are available in customizable sizes as per the clients’ specifications.
- Our shutters are manufactured from the best quality metals which ensure long lasting performance
- The bottom profile of the door is incorporated with additional stiffeners to provide an additional strength
- Steel, aluminums or stainless steel grill rolling shutters are available in various designs
- Our shutters are manufactured from the best quality metals which ensure long lasting performance
- Our drives have weight carrying capacity until 2500Kgs
- Motorised rolling shutters are self sufficient and can be operated by a single push button
- Our shutters are in-build with high performance drives and intelligent controls
- In case of power failure, these doors can be operated manually using a hand crank or chain drive
- Our Drives are inbuilt with Special Anti Drop device and additional Electromagnetic brake to ensure that the door does not free-fall in any worst conditions
- Finger-tip control to open and close shutters of any size with the utmost ease from a single push-button switch or a radio remote control transmitter
- Noiseless operation and Excellent strength
- Easy installation and Low maintenance
- Our shutters are manufactured from the best quality metals which ensure long lasting performance
- Grill rolling shutters are one of the options that you may choose as your shutter curtain among the many types of roller shutters
- Grill rolling shutters are light but strong and allow air ventilation while ideal for creating a friendly barrier from the outside
PRODUCT |
Motorized Powder Coated Grill Rolling Shutters |
||
GATE DIMENSION |
|||
| Width Min./Max. | 1000/8000mm | ||
| Height Min./Max. | 1000/8000mm Max. Area 36.0Sqm Larger Dimension on request |
||
| Opening Direction | Vertical | ||
| Mounting Location | Center/Inside/Outside | ||
| Opening/Closing Speed | 0.05-0.1mtr /sec | ||
| Mounting Surface | Side Brackets : On Concrete /steel Side Guides : on Concrete/Steel/ Masonry |
||
SHUTTER STRUCTURE |
|||
| Curtain Types | Brick Perforated |
||
| Side Brackets | M.S plate 3mm to 10mm thick, as per the opening dimension | ||
| Side Guide Profile | Steel Side guides 75 mm, 100 mm, 150 mm & 200 mm wide Box guides |
||
| Bottom Profile | Mild Steel Powder Coated Bottom Plate with Angle Stiffener Rubber bottom seal as optional |
||
| Roller Shaft |
|
||
| Side Brackets | M.S plate 3 mm to 10 mm,as per the opening dimension | ||
| Hood Cover | Galvanized Steel Sheet Grill Pattern Available in : G.I material |
||
FINISH |
|||
| Surface Finish | Primer finish as standard | ||
| Painting (Optional) | Powder coating | ||
DETAILS FOR AUTOMATION SYSTEM |
|||
| Control Type | Deadman /Pulse Control | ||
| Drive Type | In-Direct / Direct Connecting Type drive | ||
| Drive Unit | Electric Motor(Imported Make) Single Phase/Three Phase | ||
| Emergency Operation | Manual operation by Hand chain or hand crank | ||
| Options Available | Perforation In Slat profile Rolling Grill |
||
| Accessories(Optional) can be integrated with advanced control |
|
||
- Hospitals
- Pharmaceuticals
- Aircraft
- Shipyards
- Food Industries
- Retail Malls
- Automobiles
- Logistics
- Chemical Industries
- Residential and Educational Places
