Motorised Telescopic Sliding Gates
- A motorized sliding gate may be used for openings of any size and ensures the security of your property. Thus, electric gates are the ideal answer for individuals who value their property’s protection and a great option for those seeking more security.
The telescoping gate is perfect for achieving the most clear opening when the run back is severely constrained. When compared to single leaf gates, telescopic tracked gates may be built with up to five sections, which can minimise the run back need by 75%. All of the leaves may move simultaneously thanks to our unique static drive system, or we can use a unique moving drive system that is built into the leading gate leaf and drives the back wheel.
Operated by a specifically designed telescoping mechanism, each telescopic gate panel will move at a separate pace to ensure that the ultimate position is reached simultaneously.
- Trackless design means unlimited overhead clearance and no special drains below
- Automatic swing gates can work even under the most difficult conditions
- Gates are specially designed with top and bottom pivot mechanism
- Dust proof operating mechanism increases the life of our gates
- Our Gates leafs are free from sagging/bending
- Unit arrives ready to bolt down and turn on, virtually no field assembly required
- Aesthetically pleasing Anti-climb configuration available
- Spring loaded hinges assures gate will be closed when not in use
- Single or Dual-Panel design allows for easy loading/unloading operation
- Slide design takes up less floor space than swing design
- Suits gates up to a weight of 300 to 1800kgs
- Anti crushing safety device built in to the system
- Slow down mode when closing to prevent slamming of the gate – reducing noise
- Easy to operate manual release in case of a power black out
- Easy to operate manual release in case of a power black out
- Electro-mechanical swing gate operator designed for medium to intensive use
- Electro-hydraulic swing gate operator designed for medium to very intensive use
- Various industrial gate designs available to suit clients choice
- Control to stop anytime while gate is moving
- Sand blasting, Hot deep galvanizing process, painting can be provided
PRODUCT |

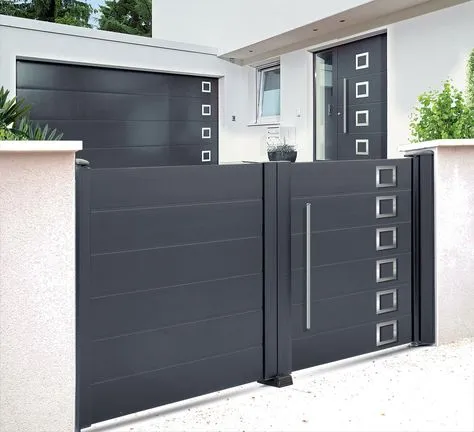

Automatic Swing Gates |
||
GATE DIMENSION |
|||
| Width Min./Max. | Single Leaf : 1200/3800mm Double Leaf :2400/7500mm |
||
| Height Min./Max. | 1200/2300mm Larger Dimension on request |
||
| Max. Number of Leaves | Single Leaf:1 Nos Double Leaf:2 Nos |
||
| Mounting Location | Inside/ Pillar center | ||
| Mounting Surface | Columns : RCC | ||
GATE STRUCTURE |
|||
| Pattern | Standard Mild Steel and Stainless Steel Tubular pattern | ||
| Internal member | Heavy Duty Vertical Box sections (or Customized design available on request) |
||
| Outer Frame | Heavy Duty tubular box section (or Customized design available on request) |
||
| Full height Column | Heavy Duty Box Section (or Customized design available on request) |
||
| Hinges | High precision top & bottom pivoted hinges with ball bearing / heavy duty hinges | ||
PATTERNS/DESIGNS |
|||
| Other available gate material | Stainless Steel, Hot dip Galvanized Steel, Cast Iron Steel, Mild Steel |
||
| Sheets | M.S/GI/Perforated /Aluminium sheets Polycarbonate / Acrylic / PVC Sheet/Glass/Wood/WPC Wood/Fundermax panels |
||
| Ornamental Designs | On Request or as per client or architect design. | ||
| Options Available | Spikes as per requirement Wicket gate/Side Gates in the similar pattern as the main gate Any type of Customized Design can be made on request. |
||
FINISH |
|||
| Surface Finish | Surface preparation:-Sand Blasting Standard: Primer Finish Optional: Enamel Painting/Duco/PU painting/ Powder coating/ Hot deep Galvanising |
||
DETAILS FOR AUTOMATION SYSTEM |
|||
| Drive Unit | Motor arm or Underground motor selection done on space availability & frequency of operation. Single( A.C & D.C )Phase |
||
| Emergency Operation | Manual release knob | ||
| Accessories (Optional) |
|
||
| Features | Interlocking with existing boom barriers if required | ||
- Hospitals
- Pharmaceuticals
- Aircraft
- Shipyards
- Food Industries
- Retail Malls
- Automobiles
- Logistics
- Chemical Industries
- Residential and Educational Places
