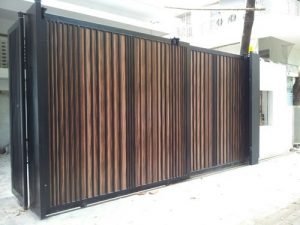

Motorised Telescopic Sliding Garage Doors
- Our Telescopic Garage Doors are ideal for sites with little back-run. When compared to a single leaf gate, telescopic garage doors may be built with up to four sections and can minimise the needed run back by 75%. Each telescopic garage door panel will move at a distinct pace, allowing the ultimate position to be achieved simultaneously, thanks to a uniquely designed telescoping mechanism. Telescopic garage doors may be customised and constructed to exact site specifications; they are ideal for medium to heavy duty applications. Telescopic garage doors are limited to two sections only. Telescopic garage doors are perfect for achieving the largest clear opening where the run back is relatively limited.
- Telescopic garage doors are the obvious choice for restricted car parking areas because they maximize the width of the door opening, giving an attractive solution when space is limited. Because of its exact design, this solution is appropriate for high-traffic areas, such as where shopping trolleys enter and exit. The device automatically identifies settings such as difficult open or close rebound with the new microcomputer control. Bengaluru Enterprises may be adjusted in terms of door height, front, and multi-directionality. Simple and easy installation.
- Clear cut shape & fashionable designs available to suit clients choice
- Garage doors can be locked in open or closed position
- Bottom roller assembly& top track bearing with nylon roller assembly designed for linear free motion
- At each end, a track stopper is placed to absorb any impact and to hold the door in the open or closed position
- Bottom guide track & top hanging roller track for telescopic sliding operation of the garage door
- Wicket door for easy access may be incorporated into a sliding door
- Perfect opening solution of partial sliding (single side or bi parting) of door panels can be decided on the actual space available for garage door parking.
- The telescopic sliding garage door gear range is designed for continuous hard wearing use with sliding garage doors up to 1800Kgs
- Can be designed in 2 to 3 leafs for single slide motion
- Rollers made of specially designed composite materials such as nylon with bearing for trouble smooth operation
- Increased personal security with driveway garage door operated from the safety of your car
- Quick release disengaging mechanism inside garage enables changeover to manual operation in case of power failure
- Infrared sensor system reverses the direction of the door if any obstruction cuts across the invisible light beam
- Easy to operate through push button/ Remote control
- Increased privacy – no uninvited visitors
- A total safety system, automatic hung sliding garage doors are designed to meet all operational & safety needs
- Facility for Emergency side Entrance Door
PRODUCT |
Motorised Telescopic Sliding Garage Doors |
||
| DOOR TYPE | Single Telescopic Slide / Bi-Parting Telescopic Slide Type | ||
DOOR DIMENSION |
|||
| Width Min./Max. | Single Leaf : 1600/14000mm Double Leaf :3200/28000mm |
||
| Height Min./Max. | 1600/6000mm Larger Dimension on request |
||
| Opening Direction | Horizontal | ||
| Mounting Location | Inside/Outside | ||
| Mounting Surface | Bottom Rail: RCC/Steel Columns : RCC/Steel |
||
| Garage Door Mounting | On Top Track Mechanism | ||
DOOR STRUCTURE |
|||
| Outer Frame | Tubular box section (or Customized design available on request) |
||
| Internal Design | Customized design ( vertical and horizontal design ) | ||
| Bottom Rail | “U” guide bottom track ( Mild Steel, Galvanised steel, Stainless Steel ) | ||
| Bottom Rollers | Steel with Nylon bottom guide rollers ( Mild Steel, Galvanised steel, Stainless Steel ) | ||
| Mechanism | Specially designed turning bearing rollers with turning door panels | ||
| Top Guide Rollers | Sealed ball bearing rollers both side mounted on top running track for support & smooth movement of door. | ||
PATTERNS/DESIGNS |
|||
| Other available gate material | Stainless Steel, Mild Steel, Hot dip Galvanized Steel, Aluminium Steel |
||
| Sheets | M.S/GI/Perforated /Aluminium sheets Polycarbonate / Acrylic / PVC Sheet/Glass/Wood/WPC Wood/Fundermax panels |
||
| Ornamental Designs | On Request or as per client or architect design | ||
| Options Available | Spikes as per requirement Wicket door/Side doors in the similar pattern as the main garage door Any type of Customized Design can be made on request |
||
FINISH |
|||
| Surface Finish | Standard: Primer Finish Optional: Enamel Painting/Duco/PU painting/ Powder coating/ Hot deep Galvanising |
||
DETAILS FOR AUTOMATION SYSTEM |
|||
| Drive Unit | Imported & Indian make electromechanical drive having features such as powerful startup & thermal sensors Single( A.C & D.C )/Three Phase |
||
| Emergency Operation | Manual release knob | ||
| Accessories (Optional) |
|
||
- Hospitals
- Pharmaceuticals
- Aircraft
- Shipyards
- Food Industries
- Retail Malls
- Automobiles
- Logistics
- Chemical Industries
- Residential and Educational Places
