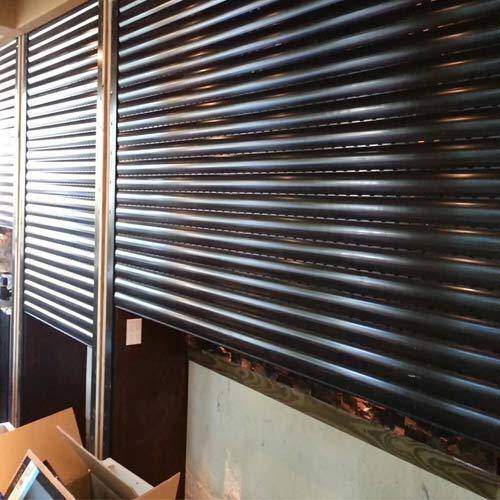

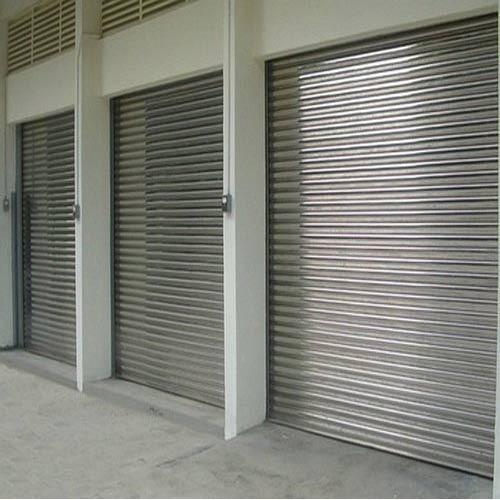

Motorised Stainless Steel Rolling Shutters
- Stainless Steel Rolling Shutters provide a beautiful, high-tech appearance, but might be excessively pricey. To get around this and make the elegance of stainless steel doors significantly more affordable. To the untrained eye, they appear to be a fully stainless steel door.
- We provides a wide range of Stainless Steel Rolling Shutters to our customers. These are created using high-quality raw materials and modern technology. Our Stainless Steel Rolling Shutters provide easy and smooth movement while also providing maximum sturdiness, minimal maintenance costs, corrosion resistance, and excellent durability. Our Stainless Steel Rolling Shutters are a popular product among our international clients, particularly in the shipping, pharmaceutical, and hotel industries.
- Our innovative method lowers the cost of stainless steel shutters for anyone looking for a door with the clean, shining, metallic appearance that only this material can provide. Bengaluru Enterprises provides a diverse selection of Stainless Steel Rolling Shutters that are precisely constructed. Our whole product line is made from high-quality stainless steel acquired from industry-reliable and verified sources. They are naturally quality assured and can endure tremendous pressure and weather conditions. Furthermore, we provide them at the most reasonable prices.
- Our shutters are manufactured from the best quality metals which ensure long lasting performance
- The bottom profile of the door is incorporated with additional stiffeners to provide an additional strength
- Steel, aluminums or stainless steel grill rolling shutters are available in various designs
- Our shutters are manufactured from the best quality metals which ensure long lasting performance
- Our drives have weight carrying capacity until 2500Kgs
- Motorised rolling shutters are self sufficient and can be operated by a single push button
- Our shutters are in-build with high performance drives and intelligent controls
- In case of power failure, these doors can be operated manually using a hand crank or chain drive
- Our Drives are inbuilt with Special Anti Drop device and additional Electromagnetic brake to ensure that the door does not free-fall in any worst conditions
- Finger-tip control to open and close shutters of any size with the utmost ease from a single push-button switch or a radio remote control transmitter
- Noiseless operation and Excellent strength
- Easy installation and Low maintenance
- Our shutters are manufactured from the best quality metals which ensure long lasting performance
- Grill rolling shutters are one of the options that you may choose as your shutter curtain among the many types of roller shutters
- Grill rolling shutters are light but strong and allow air ventilation while ideal for creating a friendly barrier from the outside
PRODUCT |
Motorized Stainless Steel Rolling Shutters |
||
SHUTTER DIMENSION |
|||
| Width Min./Max. | 1000/12000mm | ||
| Height Min./Max. | 1000/14000mm Max. Area 120.0Sqm |
||
| Opening Direction | Vertical | ||
| Mounting Location | Center/Inside/Outside | ||
| Opening/Closing Speed | 0.05-0.1mtr /sec | ||
| Mounting Surface | Side Brackets : On Concrete /steel Side Guides : on Concrete /Steel/ Masonry |
||
| Wind Resistance Up to | 90Km/Hr * Higher wind pressure on request |
||
GATE STRUCTURE |
|||
| Slat Material | Interlocking S.S Slats Std. Steel Grade : 304 (Other steel grades available on request) |
||
| Slat Profile | Corrugated Profile (RSC 78, RSC 88) Optional Flat Profile |
||
| Side Guide | Stainless Steel “U” Shaped profile Box shaped guides with wind hooks as optional |
||
| Bottom Profile | Stainless Steel Profile with angle Stiffener Rubber bottom seal as optional |
||
| Roller Shaft | Heavy duty Mild Steel strong suspension Tubular shaft without springs | ||
| Side Brackets | M.S plate 3mm to 10mm thick, as per the opening dimension Optional in S.S plate |
||
| Hood Cover | Stainless Steel Hood Cover made of sheet thickness 0.4mm/0.5mm | ||
| Options Available | Perforation In Slat profile Rolling Grill Wicket Door for pedestrian entry Vision windows at human height level |
||
FINISH |
|||
| Surface Finish | Natural Stainless Steel Finish Optional : Buffing/Matt finish |
||
DETAILS FOR AUTOMATION SYSTEM |
|||
| Control Type | Casing made of compact impact-resistant material incorporating operating buttons for shutter operation. Specific IP rating provided as per the requirement. Deadman/Pulse Control suggested application wise. |
||
| Drive Type | Imported make Indirect /Direct Connecting Drive selection made depending on the space opening availability, no of operations subjected etc. Drive with integral breaking system with Long life expectancy |
||
| Drive Unit | Electric Motor(Imported Make) Single Phase/Three Phase | ||
| Emergency Operation | Manual operation by Hand chain or hand crank | ||
| Accessories(Optional) can be integrated with advanced control |
|
||
- Hospitals
- Pharmaceuticals
- Aircraft
- Shipyards
- Food Industries
- Retail Malls
- Automobiles
- Logistics
- Chemical Industries
- Residential and Educational Places
