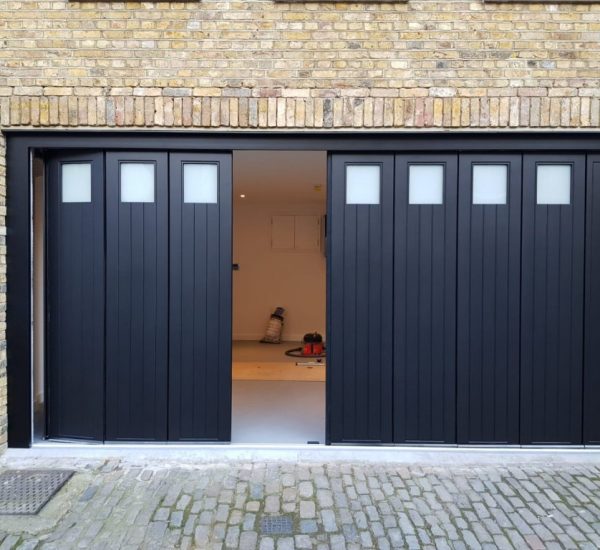

Motorised Sliding Garage Doors
- Sectional garage doors open and close vertically, allowing for more room surrounding the entrance. This is ideal for shorter garages or driveways since it allows cars to be positioned up to the entrance without requiring space to ‘swing out’ while opening the door. The door panels curl upwards over the aperture before returning to the garage’s headroom. A Sectional door, unlike most other garage door types, may provide complete drive-through height and width when properly installed and specified. This is an excellent choice for garages with limited entry dimensions or that require huge vehicle access.
- Sectional doors were originally meant to be installed behind the opening, with the arrangement of the springs and guides limiting their flexibility. These doors, however, may now be installed between the openings using modified installation kits and different gear mechanism choices. To suit any aperture, custom-designed fascias and panelling can be employed.
- Clear cut shape & fashionable designs available to suit clients choice
- Garage doors can be locked in open or closed position
- Rollers made of specially designed composite materials such as nylon for trouble free operation
- Seals to the top, sides and bottom of the door panel
- Glazing choices include Acrylic glass, plexiglas, tempered glass, clear glass, wire glass and polycarbonate
- Optional finishes include a variety of standard powder-coat paint colors
- Control to stop anytime while garage door is moving
- Increased personal security with driveway garage door operated from the safety of your car
- Quick release disengaging mechanism inside garage enables changeover to manual operation in case of power failure
- Infrared sensor system reverses the direction of the door if any obstruction cuts across the invisible light beam
- Smooth and Noiseless Function
- Safety features including finger safe panels and spring break arrestors
- Easy to operate through push button/ Remote control
- Heavy duty side Z type guiding track for top sectional folding operation of the sectional garage door
- A total safety system, automatic sectional garage doors are designed to meet all operational & safety needs
PRODUCT |
Motorised Sectional Garage Doors |
||
| DOOR TYPE | Overhead Multi Folding | ||
DOOR DIMENSION |
|||
| Width Min./Max. | Single Leaf : 1600/6000mm | ||
| Height Min./Max. | 1700/ 3000 mm. Larger Dimension on request |
||
| Opening Direction | Vertical Overhead Folding | ||
| Mounting Location | Inside | ||
| Garage Door Mounting | On Side Track Mechanism | ||
DOOR STRUCTURE |
|||
| Outer Frame | Tubular box section (or Customized design available on request) |
||
| Internal Design | Customized design ( vertical and horizontal design ) | ||
| Bottom Plate | Bottom Fixed Plates ( Mild Steel, Galvanised steel, Stainless Steel ) | ||
| Side Track Rollers | Zinc-Plated Round Rod with Nylon roller hinge for a high- |
||
| Side Tracks | Heavy duty side Z type guiding track for top sectional folding operation of the sectional garage door ( Mild Steel, Galvanised steel, Stainless Steel ) | ||
| Mechanism | Specially designed Nylon bearing rollers with vertically folding door panels | ||
PATTERNS/DESIGNS |
|||
| Other available gate material | Stainless Steel, Mild Steel, Hot dip Galvanized Steel, Aluminium Steel |
||
| Sheets | M.S/GI/Perforated /Aluminium sheets Polycarbonate / Acrylic / PVC Sheet/Glass/Wood/WPC Wood/Fundermax panels |
||
| Ornamental Designs | On Request or as per client or architect design | ||
| Options Available | Spikes as per requirement Wicket door/Side doors in the similar pattern as the main garage door Any type of Customized Design can be made on request |
||
FINISH |
|||
| Surface Finish | Standard: Primer Finish Optional: Enamel Painting/Duco/PU painting/ Powder coating/ Hot deep Galvanising |
||
DETAILS FOR AUTOMATION SYSTEM |
|||
| Drive Unit | Imported & Indian make electromechanical drive having features such as powerful startup & thermal sensors Single( A.C & D.C )/Three Phase |
||
| Emergency Operation | Manual release knob | ||
| Accessories (Optional) |
|
||
- Hospitals
- Pharmaceuticals
- Aircraft
- Shipyards
- Food Industries
- Retail Malls
- Automobiles
- Logistics
- Chemical Industries
- Residential and Educational Places
