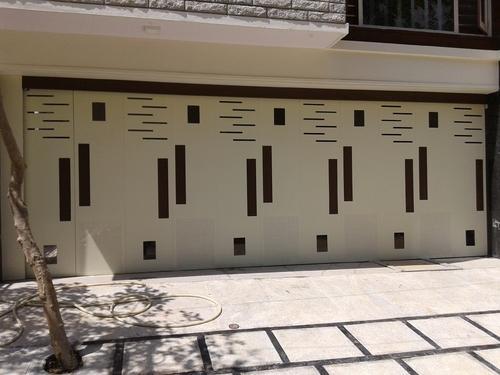

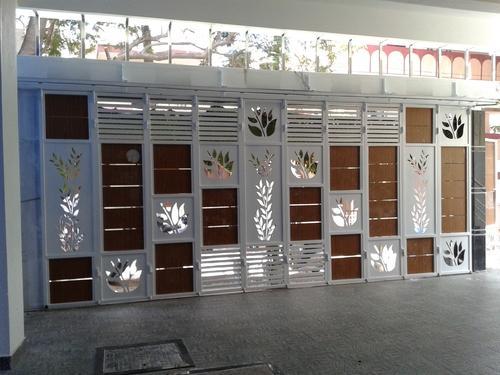

Motorised Slide Hung Garage Doors
- Our garage doors were one of the first types of garage doors to employ the top hanging track style of garage doors. The doors, which slide on various types of top hanging rollers with guides generally running in a U channel cut into the ground, may be constructed to virtually any size from various types of timber or steel. The bottom channel, on the other hand, was a weak spot in the operation because it routinely filled with leaves, gravel, and other debris, which if not cleared away, would disrupt the sliding function of the door. With regular vehicle use planned, the bottom tracks are robust durable and designed to be both stylish and useful.
- Our garage doors were one of the first types of garage doors to employ the top hanging track style of garage doors. The doors, which slide on various types of top hanging rollers with guides generally running in a U channel cut into the ground, may be constructed to virtually any size from various types of timber or steel. The bottom channel, on the other hand, was a weak spot in the operation because it routinely filled with leaves, gravel, and other debris, which if not cleared away, would disrupt the sliding function of the door. With regular vehicle use planned, the bottom tracks are robust durable and designed to be both stylish and useful.
- Clear cut shape & fashionable designs available to suit clients choice
- Garage doors can be locked in open or closed position
- Hung top track rollers made of specially designed composite materials such as nylon with bearing for trouble smooth operation
- Glazing choices include Acrylic glass, plexiglas, tempered glass, clear glass, wire glass and polycarbonate
- Control to stop anytime while garage door is moving
- Increased personal security with driveway garage door operated from the safety of your car
- Quick release disengaging mechanism inside garage enables changeover to manual operation in case of power failure
- Infrared sensor system reverses the direction of the door if any obstruction cuts across the invisible light beam
- Easy to operate through push button/ Remote control
- Increased privacy – no uninvited visitors
- A total safety system, automatic hung sliding garage doors are designed to meet all operational & safety needs
- Continuous runs of track are formed by butt-joining several lengths, using a track support welded bracket at each joint
- Vertical adjustment is incorporated in the hanger body, avoiding the need to drill the door
- Wicket door for easy access may be incorporated into a sliding door
- The hung sliding garage door gear range is designed for continuous hard wearing use with sliding garage doors up to 2000Kgs
- Support welded brackets, designed for side or top fixings and for single or double track runs
- Designed to accommodate for different residential building designs, doors can slide to one or both sides
PRODUCT | Motorised Slide Hung Garage Doors | ||
| DOOR TYPE | Single side / Bi-parting Type | ||
DOOR DIMENSION | |||
| Width Min./Max. | Single Leaf : 1600/16000mm Double Leaf :3200/32000mm | ||
| Height Min./Max. | 1600/11000mm Larger Dimension on request | ||
| Opening Direction | Horizontal Slide | ||
| Mounting Location | Inside/Outside | ||
| Mounting Surface | Bottom Rail: RCC/Steel Columns : RCC/Steel | ||
| Garage Door Mounting | On Top Track Mechanism | ||
DOOR STRUCTURE | |||
| Outer Frame | Tubular box section (or Customized design available on request) | ||
| Internal Design | Customized design ( vertical and horizontal design ) | ||
| Bottom Rail | “U” guide bottom track ( Mild Steel, Galvanised steel, Stainless Steel ) | ||
| Bottom Rollers | Steel with Nylon bottom guide rollers ( Mild Steel, Galvanised steel, Stainless Steel ) | ||
| Mechanism | Specially designed turning bearing rollers with turning door panels | ||
| Top Guide Rollers | Sealed ball bearing rollers both side mounted on top running track for support & smooth movement of door. | ||
PATTERNS/DESIGNS | |||
| Other available gate material | Stainless Steel, Mild Steel, Hot dip Galvanized Steel, Aluminium Steel | ||
| Sheets | M.S/GI/Perforated /Aluminium sheets Polycarbonate / Acrylic / PVC Sheet/Glass/Wood/WPC Wood/Fundermax panels | ||
| Ornamental Designs | On Request or as per client or architect design | ||
| Options Available | Spikes as per requirement Wicket door/Side doors in the similar pattern as the main garage door Any type of Customized Design can be made on request | ||
FINISH | |||
| Surface Finish | Standard: Primer Finish Optional: Enamel Painting/Duco/PU painting/ Powder coating/ Hot deep Galvanising | ||
DETAILS FOR AUTOMATION SYSTEM | |||
| Drive Unit | Imported & Indian make electromechanical drive having features such as powerful startup & thermal sensors Single( A.C & D.C )/Three Phase | ||
| Emergency Operation | Manual release knob | ||
| Accessories (Optional) |
| ||
- Hospitals
- Pharmaceuticals
- Aircraft
- Shipyards
- Food Industries
- Retail Malls
- Automobiles
- Logistics
- Chemical Industries
- Residential and Educational Places
