Motorised Retractable Skylights
- The retractable roof system allows you to enjoy the beauty of your garden or balcony area regardless of the season, providing you and your family with cover from rain and sunlight. The fabric band sun shelter series is coupled with either a classic style timber framework or a modern powder-coated aluminium structure, adding depth and character to the installation. The Roof’s clean appearance allows it to fit in with its surroundings and incorporate into a variety of architectural styles, from simply modern to classic. Designed specifically for home, hospitality, and commercial ventures.
- Skylights that retract allow for optimum fresh air, circulation, and unparalleled vistas. Although single slope or double pitch arrangements are the most typical, retractable skylights may also be created in a broad range of unique layouts. Our retractable skylights may be increased and adjusted to fulfil practically any structural or aesthetic necessity, depending on pitch, size, and design requirements.

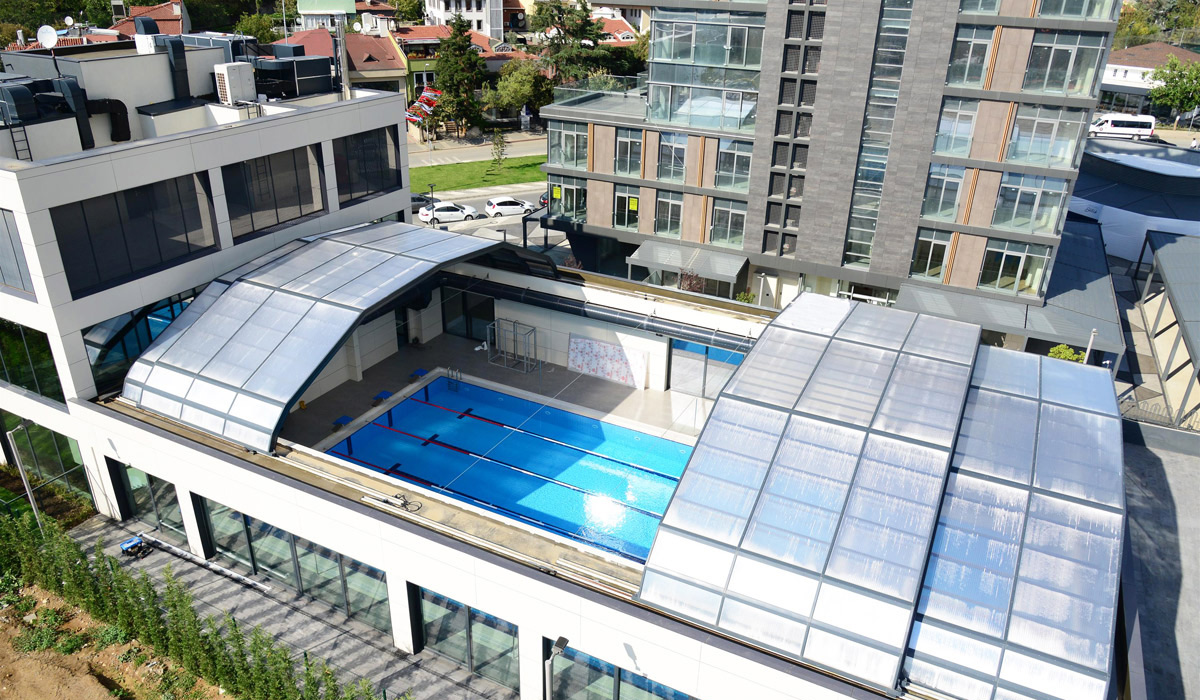

- Retractable Skylights make a striking statement in any residential or commercial application, and can be put in a typical construction roof, an existing glass building, or created as part of a custom project such as pool houses, pool enclosures, greenhouses, sunrooms, or conservatories. Screens are frequently placed to retractable skylights to keep insects out of the structure.
- Rain Protection
- Ventilation
- Control light and shade
- Control solar heat
- Can withstand strong wind loads
- Increased privacy – no uninvited visitors
- Wide range of electromechanical operators for sky lights upto 3000kg weight
- Control to stop anytime while gate is moving
- Works on Precise machine cut toothed pinion along with galvanized rack & chain with wire rope arrangement
- These automatic sky lights are widely used and Economical option among all the types of sky lights

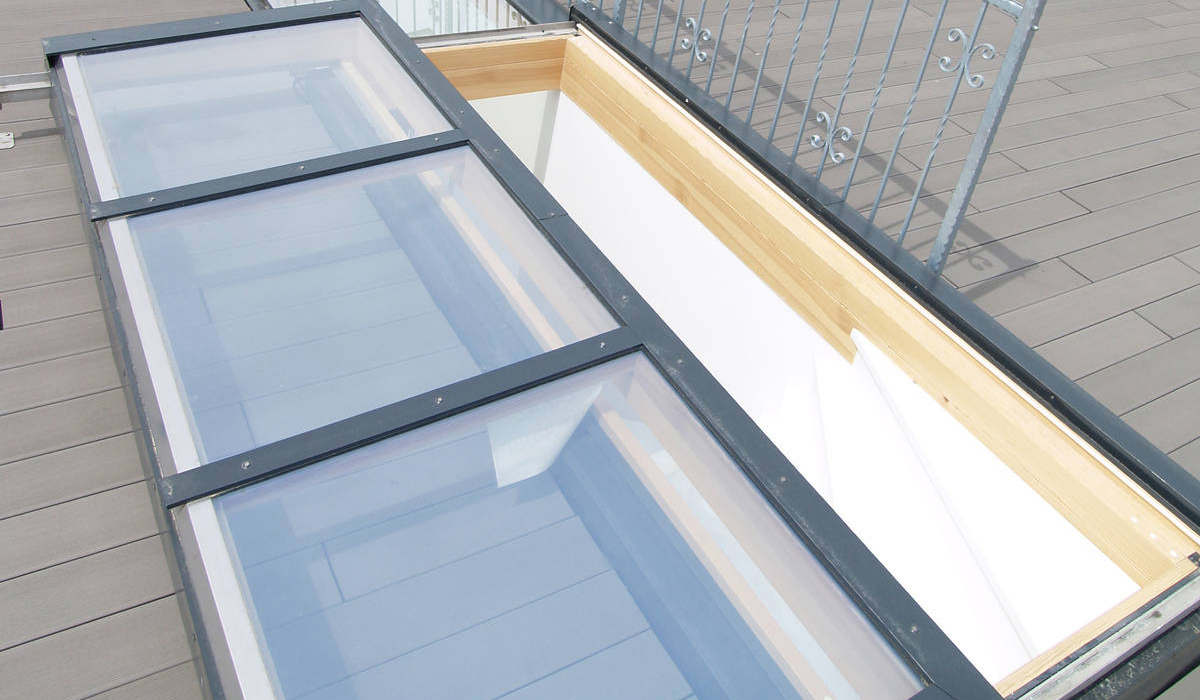

- Sliding motorised roof system consisting of 3 or 4 glazing panels; the roof can be opened to two thirds or three quarters of its total width as the topmost panel is fixed and cannot be moved
- Our sky lights are available in single side or double side sliding suggested to suit actual site condition
- This exclusive Tender system permits maximum flexibility of use, as each pair of modules can be opened and closed independently
- Sky lights are available in single side or double side telescopic sliding( multi telescopic 2,3,4,5,6,7,8,9 ) suggested to suit actual site condition
- Bottom rail made up of polished bright bar( aluminium, stainless steel ) which is supported by heavy duty beam
- Bottom steel with nylon rollers with bearings are used for smooth operation
- Various residential, commercial & industrial sky light designs available to suit clients choice
- Quick release disengaging mechanism inside sliding sky lights enables changeover to manual operation in case of power failure
- Optical beam sensor: Safety device to detect presence of reversal of gate movement
- It can be integrated with any kind of access controller system i.e. RFID device, Fingerprint and Biometric devices, Remote, card dispenser and Push button etc
PRODUCT |
Motorised Retractable Roof |
||
RETRACTABLE DIMENSION |
|||
| Width Min./Max. | Single Leaf : 600/12000mm Double Leaf :1200/24000mm |
||
| Height Min./Max. | 500/3800mm Larger Dimension on request |
||
| Telescopic Width Min./Max. | Single Leaf : 600/16000mm Double Leaf :1200/32000mm |
||
| Telescopic Height Min./Max. | 1000/4800mm Larger Dimension on request |
||
| Opening Direction | Horizontal | ||
| Mounting Location | Inside/ Outside ( retractable roof ) | ||
| Mounting Surface | Bottom Rail: RCC | ||
RETRACTABLE DESIGN |
|||
| Pattern | Standard Steel Tubular pattern or Customised Fabrication design | ||
| Internal vertical member | Heavy Duty Vertical and Horizontal Box sections (or Customized design available on request) |
||
| Bottom Rail | Polished bright bar( round ) with beam or C-channel support Dual track bottom rail for large opening gates as per design, ( Aluminium Steel, Galvanised steel, Stainless Steel ) |
||
| Bottom Rollers | Heavy Duty Bottom Nylon Wheel with both side bearings and Wheel cups, ( Galvanised Steel, Stainless Steel ) | ||
| Glazing Sheet | Solid Compact Polycarbonate Sheet available in varient colours & sizes | ||
| Embossed Sheet | Solid Embossed Polycarbonate Textured Sheets with Ultra Violet Coated | ||
| Multiwall Sheet | Multiwall Polycarbonate Sheets with high quality of Ultra Violet Resistance, Solar Control, Weather Ability | ||
PATTERNS/DESIGNS |
|||
| Other available gate material | Stainless Steel, Aluminium Steel, Galvanised Steel | ||
| Sheets | GI/Aluminium sheets Polycarbonate / Acrylic / PVC Sheet/Glass/Wood/WPC Wood/Fundermax panels |
||
| Ornamental Designs | On Request or as per client or architect design. | ||
| Options Available | Spikes as per requirement Any type of Customized Design can be made on request. |
||
FINISH |
|||
| Surface Finish | Standard: Primer Finish Optional: Enamel Painting/Duco/PU painting/ Powder coating/ Hot deep Galvanising |
||
DETAILS FOR AUTOMATION SYSTEM |
|||
| Drive Unit | Imported & Indian make electromechanical drive having features such as powerful startup & thermal sensors Single( A.C & D.C )/Three Phase |
||
| Emergency Operation | Manual release knob | ||
| Accessories (Optional) |
|
||
- Hospitals
- Pharmaceuticals
- Aircraft
- Shipyards
- Food Industries
- Retail Malls
- Automobiles
- Logistics
- Chemical Industries
- Residential and Educational Places
