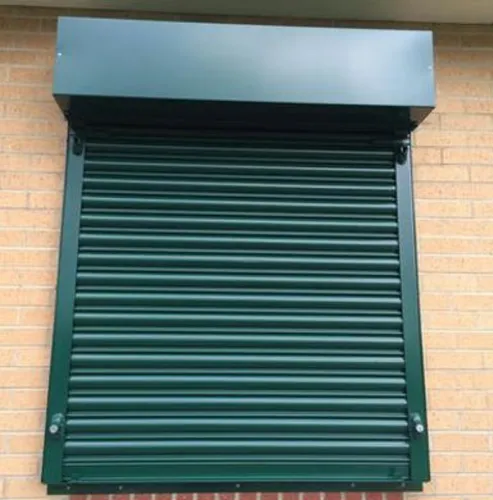

Motorised Mild Steel Patti Shutters
- M.S. rolling shutters are made of high-quality steel rods and work on the same principles as rolling shutters. This shutter can be combined with grills or perforated panels to provide ventilation or see-through viewing. It’s simple to set up. It is weatherproof. This roller shutter is a low-cost option for any application, preventing corrosion and extending shutter life.
- The rolling shutter is comprised of strong steel strips that are linked and hinged for optimal strength. These shutters are fitted with high-quality, time-tested coiled springs for smooth operation. The rolling shutter is available in a variety of sizes. It offers comprehensive protection and exceptional resistance to wind, rain, and burglary.
- Because of its ease of operation, durability, maintenance, and safety, roller shutters have traditionally been regarded as one of the most trustworthy additions to any structure. Along with providing safety and other specified qualities to any structure, it also gives ideal seclusion without sacrificing the property’s visual appeal.
- Our shutters are manufactured from the best quality metals which ensure long lasting performance
- The bottom profile of the door is incorporated with additional stiffeners to provide an additional strength
- Steel, aluminums or stainless steel grill rolling shutters are available in various designs
- Our shutters are manufactured from the best quality metals which ensure long lasting performance
- Our drives have weight carrying capacity until 2500Kgs
- Motorised rolling shutters are self sufficient and can be operated by a single push button
- Our shutters are in-build with high performance drives and intelligent controls
- In case of power failure, these doors can be operated manually using a hand crank or chain drive
- Our Drives are inbuilt with Special Anti Drop device and additional Electromagnetic brake to ensure that the door does not free-fall in any worst conditions
- Finger-tip control to open and close shutters of any size with the utmost ease from a single push-button switch or a radio remote control transmitter
- Noiseless operation and Excellent strength
- Easy installation and Low maintenance
- Our shutters are manufactured from the best quality metals which ensure long lasting performance
- Grill rolling shutters are one of the options that you may choose as your shutter curtain among the many types of roller shutters
- Grill rolling shutters are light but strong and allow air ventilation while ideal for creating a friendly barrier from the outside
PRODUCT |
Mild Steel Patti Motorized Rolling Shutters |
||
GATE DIMENSION |
|||
| Width Min./Max. | 1000/12500mm | ||
| Height Min./Max. | 1000/14000mm Max. Area 120.0 Sqm |
||
| Opening Direction | Vertical | ||
| Mounting Location | Center | ||
| Opening/Closing Speed | 0.05-0.1mtr /sec | ||
| Wind Resistance Up to | 90Km/Hr * Higher wind pressure on request |
||
GATE STRUCTURE |
|||
| Slat Material | CRC Mild Steel Slats available in 0.9 mm, 1.0 mm & 1.2 mm thickness | ||
| Slat Profile | Corrugated Profile (RSC 78, RSC 88, RSC 113) Optional Flat Profile |
||
| Side Guide | Mild Steel Side guides 75 mm, 100 mm, 150 mm & 200 mm wide Box guides with wind hooks for higher wind pressure as optional |
||
| Bottom Profile | Mild Steel Bottom Plate with Angle Stiffener Rubber bottom seal as optional |
||
| Roller Shaft | Heavy duty Mild Steel strong suspension Tubular shaft without springs | ||
| Side Brackets | M.S plate 3 mm to 10 mm,as per the opening dimension | ||
| Hood Cover | Mild Steel sheet | ||
FINISH |
|||
| Surface Finish | Primer finish as standard | ||
| Painting (Optional) | Enamel/ Powder coating /Duco/ Epoxy/ PU | ||
DETAILS FOR AUTOMATION SYSTEM |
|||
| Control Type | Casing made of compact impact-resistant material incorporating operating buttons for shutter operation. Specific IP rating provided as per the requirement. Deadman/Pulse Control suggested application wise. |
||
| Drive Type | Imported make Indirect /Direct Connecting Drive selection made depending on the space opening availability, no of operations subjected etc. Drive with integral breaking system with Long life expectancy |
||
| Drive Unit | Electric Motor(Imported Make) Single Phase/Three Phase | ||
| Emergency Operation | Manual operation by Hand chain or hand crank | ||
| Options Available | Perforation In Slat profile Rolling Grill Wicket Door for pedestrian entry Vision windows at human height level |
||
| Accessories(Optional) can be integrated with advanced control |
|
||
- Hospitals
- Pharmaceuticals
- Aircraft
- Shipyards
- Food Industries
- Retail Malls
- Automobiles
- Logistics
- Chemical Industries
- Residential and Educational Places
