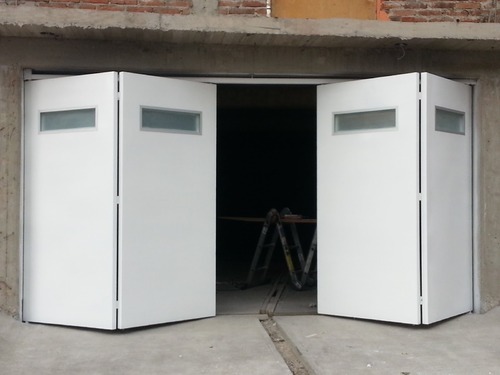

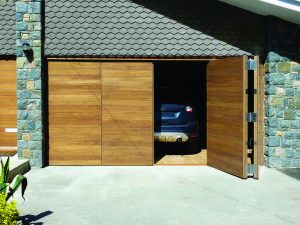

Motorised Hinged Garage Doors
- “Side Hinged Garage Doors are a terrific alternative to regular garage doors, giving you more flexibility in how you utilise your garage.” One significant advantage of a Side Hinged Garage Door is that it is easily accessible on foot, making it perfect for use other than car storage.”
- Telescopic garage doors are the obvious choice for restricted car parking areas because they maximize the width of the door opening, giving an attractive solution when space is limited. Because of its exact design, this solution is appropriate for high-traffic areas, such as where shopping trolleys enter and exit. The device automatically identifies settings such as difficult open or close rebound with the new microcomputer control. Bengaluru Enterprises may be adjusted in terms of door height, front, and multi-directionality. Simple and easy installation.
- Attractive glazing
- Wicket or side doors options
- Clear cut shape & fashionable designs available to suit clients choice
- Garage doors can be locked in open or closed position
- Rollers made of specially designed composite materials such as nylon with bearing for trouble smooth operation
- Increased personal security with driveway garage door operated from the safety of your car
- Quick release disengaging mechanism inside garage enables changeover to manual operation in case of power failure
- Infrared sensor system reverses the direction of the door if any obstruction cuts across the invisible light beam
- Easy to operate through push button/ Remote control
- Increased privacy – no uninvited visitors
- A total safety system, automatic hung sliding garage doors are designed to meet all operational & safety needs
- Facility for Emergency side Entrance Door
PRODUCT |
Motorised Dual Fold Garage Doors |
||
| DOOR TYPE | Single Slide / Bi-Parting Slide Type | ||
DOOR DIMENSION |
|||
| Width Min./Max. | Single Leaf : 1600/6000mm Double Leaf :3200/12000mm |
||
| Height Min./Max. | 1600/4600mm Larger Dimension on request |
||
| Opening Direction | Horizontal Folding | ||
| Mounting Location | Inside/Outside | ||
| Mounting Surface | Bottom Rail: RCC/Steel Columns : RCC/Steel |
||
| Garage Door Mounting | On Top Track Mechanism | ||
DOOR STRUCTURE |
|||
| Outer Frame | Tubular box section (or Customized design available on request) |
||
| Internal Design | Customized design ( vertical and horizontal design ) | ||
| Bottom Rail | “U” guide bottom track ( Mild Steel, Galvanised steel, Stainless Steel ) | ||
| Bottom Rollers | Steel with Nylon bottom guide rollers ( Mild Steel, Galvanised steel, Stainless Steel ) | ||
| Mechanism | Specially designed turning bearing rollers with turning door panels | ||
| Top Guide Rollers | Sealed ball bearing rollers both side mounted on top running track for support & smooth movement of door. | ||
PATTERNS/DESIGNS |
|||
| Other available gate material | Stainless Steel, Mild Steel, Hot dip Galvanized Steel, Aluminium Steel |
||
| Sheets | M.S/GI/Perforated /Aluminium sheets Polycarbonate / Acrylic / PVC Sheet/Glass/Wood/WPC Wood/Fundermax panels |
||
| Ornamental Designs | On Request or as per client or architect design | ||
| Options Available | Spikes as per requirement Wicket door/Side doors in the similar pattern as the main garage door Any type of Customized Design can be made on request |
||
FINISH |
|||
| Surface Finish | Standard: Primer Finish Optional: Enamel Painting/Duco/PU painting/ Powder coating/ Hot deep Galvanising |
||
DETAILS FOR AUTOMATION SYSTEM |
|||
| Drive Unit | Imported & Indian make electromechanical drive having features such as powerful startup & thermal sensors Single( A.C & D.C )/Three Phase |
||
| Emergency Operation | Manual release knob | ||
| Accessories (Optional) |
|
||
- Hospitals
- Pharmaceuticals
- Aircraft
- Shipyards
- Food Industries
- Retail Malls
- Automobiles
- Logistics
- Chemical Industries
- Residential and Educational Places
