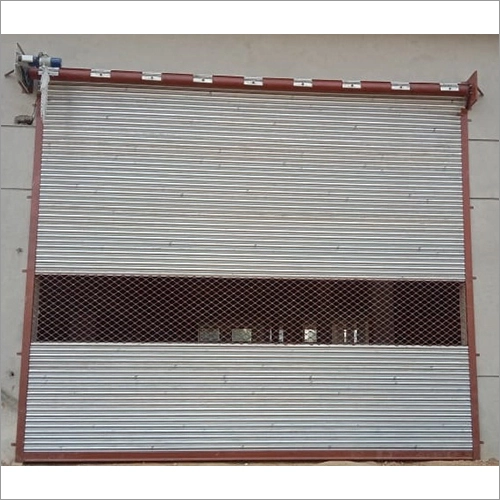

Motorised Grill Rolling Shutters
- Rolling grill shutters In terms of design, construction, and function, rolling grills are identical to rolling shutters. We are an established grill rolling shutters manufacturer and supplier in India. Grill rolling shutters are made of 8mm or 10mm MS Bright Bars welded together with vertical MS links. The Grill Rolling Shutters provide maximum visibility (approx. 85%), ensuring optimum light and ventilation.
-
Curtains made of aluminum alloy, mild steel, or stainless steel are all options. These can be created in a variety of designs based on the customer’s preferred level of safety. It improves ventilation and visibility. However, it is less secure and provides less protection than a rolling shutter. As a result, we manufacture movable shutters with grills for customers who want less ventilation. This is accomplished by including a tiny rolling grill in the rolling shutter as desired by the customer.
- Our firm specialises in producing bright bar grill rolling shutters made of international standard materials. These automated rolling grills are made of high-quality steel rods and work in the same way as rolling shutters. Ideal for showrooms and storefronts. Rolling shutter grills allow full ventilation, let in light, and keep thieves out. Motorization is an option for smooth and uncomplicated functioning. Low maintenance expenses and simple installation.
- Our shutters are manufactured from the best quality metals which ensure long lasting performance
- The bottom profile of the door is incorporated with additional stiffeners to provide an additional strength
- Steel, aluminums or stainless steel grill rolling shutters are available in various designs
- Our shutters are manufactured from the best quality metals which ensure long lasting performance
- Our drives have weight carrying capacity until 2500Kgs
- Motorised rolling shutters are self sufficient and can be operated by a single push button
- Our shutters are in-build with high performance drives and intelligent controls
- In case of power failure, these doors can be operated manually using a hand crank or chain drive
- Our Drives are inbuilt with Special Anti Drop device and additional Electromagnetic brake to ensure that the door does not free-fall in any worst conditions
- Finger-tip control to open and close shutters of any size with the utmost ease from a single push-button switch or a radio remote control transmitter
- Noiseless operation and Excellent strength
- Easy installation and Low maintenance
- Our shutters are manufactured from the best quality metals which ensure long lasting performance
- Grill rolling shutters are one of the options that you may choose as your shutter curtain among the many types of roller shutters
- Grill rolling shutters are light but strong and allow air ventilation while ideal for creating a friendly barrier from the outside
PRODUCT |
Mild Steel Patti Motorized Rolling Shutters |
||
GATE DIMENSION |
|||
| Width Min./Max. | 1000/12500mm | ||
| Height Min./Max. | 1000/14000mm Max. Area 120.0 Sqm |
||
| Opening Direction | Vertical | ||
| Mounting Location | Center | ||
| Opening/Closing Speed | 0.05-0.1mtr /sec | ||
| Wind Resistance Up to | 90Km/Hr * Higher wind pressure on request |
||
GATE STRUCTURE |
|||
| Slat Material | CRC Mild Steel Slats available in 0.9 mm, 1.0 mm & 1.2 mm thickness | ||
| Slat Profile | Corrugated Profile (RSC 78, RSC 88, RSC 113) Optional Flat Profile |
||
| Side Guide | Mild Steel Side guides 75 mm, 100 mm, 150 mm & 200 mm wide Box guides with wind hooks for higher wind pressure as optional |
||
| Bottom Profile | Mild Steel Bottom Plate with Angle Stiffener Rubber bottom seal as optional |
||
| Roller Shaft | Heavy duty Mild Steel strong suspension Tubular shaft without springs | ||
| Side Brackets | M.S plate 3 mm to 10 mm,as per the opening dimension | ||
| Hood Cover | Mild Steel sheet | ||
FINISH |
|||
| Surface Finish | Primer finish as standard | ||
| Painting (Optional) | Enamel/ Powder coating /Duco/ Epoxy/ PU | ||
DETAILS FOR AUTOMATION SYSTEM |
|||
| Control Type | Casing made of compact impact-resistant material incorporating operating buttons for shutter operation. Specific IP rating provided as per the requirement. Deadman/Pulse Control suggested application wise. |
||
| Drive Type | Imported make Indirect /Direct Connecting Drive selection made depending on the space opening availability, no of operations subjected etc. Drive with integral breaking system with Long life expectancy |
||
| Drive Unit | Electric Motor(Imported Make) Single Phase/Three Phase | ||
| Emergency Operation | Manual operation by Hand chain or hand crank | ||
| Options Available | Perforation In Slat profile Rolling Grill Wicket Door for pedestrian entry Vision windows at human height level |
||
| Accessories(Optional) can be integrated with advanced control |
|
||
- Hospitals
- Pharmaceuticals
- Aircraft
- Shipyards
- Food Industries
- Retail Malls
- Automobiles
- Logistics
- Chemical Industries
- Residential and Educational Places
