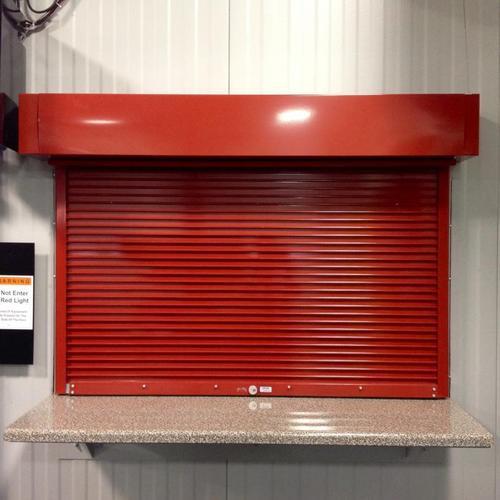

Motorised Aluminum Rolling Shutters
- Aluminium rolling shutters are widely utilised in the market for residential, commercial, and industrial applications. It is intended to be a more cost-effective alternative to grills and doors for preventing entrance and increasing security levels. Aluminium rolling shutters are lightweight and simple to operate. It’s perfect for storefronts, garage openings, tiny and low-value warehouses, staircase openings, and parking lots. It is built to endure typical wear and tear from rain and grime, as well as long-term durability and heavy usage.
- Aluminium rolling shutters improve both the beauty and the energy efficiency of your home. They provide a variety of architectural possibilities and customised comfort, as well as increasing the overall efficiency of buildings. Rolling shutters provide the proper internal environment all year round since the building apertures stay flexible. They offer protection from cold, heat, noise, inquisitive eyes, and insects at all times. They also provide improved security against break-ins.
- Our shutters are manufactured from the best quality metals which ensure long lasting performance
- The bottom profile of the door is incorporated with additional stiffeners to provide an additional strength
- Steel, aluminums or stainless steel grill rolling shutters are available in various designs
- Our shutters are manufactured from the best quality metals which ensure long lasting performance
- Our drives have weight carrying capacity until 2500Kgs
- Motorised rolling shutters are self sufficient and can be operated by a single push button
- Our shutters are in-build with high performance drives and intelligent controls
- In case of power failure, these doors can be operated manually using a hand crank or chain drive
- Our Drives are inbuilt with Special Anti Drop device and additional Electromagnetic brake to ensure that the door does not free-fall in any worst conditions
- Finger-tip control to open and close shutters of any size with the utmost ease from a single push-button switch or a radio remote control transmitter
- Noiseless operation and Excellent strength
- Easy installation and Low maintenance
- Our shutters are manufactured from the best quality metals which ensure long lasting performance
- Grill rolling shutters are one of the options that you may choose as your shutter curtain among the many types of roller shutters
- Grill rolling shutters are light but strong and allow air ventilation while ideal for creating a friendly barrier from the outside
PRODUCT |
Motorised Aluminium Rolling Shutters |
||
GATE DIMENSION |
|||
| Width Min./Max. | 1000/ 7000 mm | ||
| Height Min./Max. | 1000/ 7000 mm Max. Area 49 Sqm |
||
| Opening Direction | Vertical | ||
| Mounting Location | Center/Inside/Outside | ||
| Opening/Closing Speed | 0.05-0.1mtr /sec | ||
| Mounting Surface | Concrete, Steel | ||
SHUTTER STRUCTURE |
|||
| Slat Material | Non Insulated Double Wall Aluminium profiled Slats | ||
| Slat Profile | Corrugated Profile (RSC 78, RSC 88, RSC 113) Optional Flat Profile |
||
| Side Guide | Extruded Aluminium profile with Rubber Seals on both ends | ||
| Bottom Profile | Extruded Aluminium profile with Bottom Rubber sealing to prevent foreign particles & to incorporate sensors if required | ||
| Roller Shaft | Heavy duty Mild Steel strong suspension Tubular shaft without springs | ||
| Side Brackets | M.S plate 3 mm to 10 mm,as per the opening dimension | ||
| Hood Cover | Galvanized Steel sheet | ||
FINISH |
|||
| Surface Finish | Standard Off White Color Special Color on request |
||
| Painting (Optional) | Enamel/Duco Colours | ||
DETAILS FOR AUTOMATION SYSTEM |
|||
| Control Type | Casing made of compact impact-resistant material incorporating operating buttons for shutter operation. Specific IP rating provided as per the requirement. Deadman/Pulse Control suggested application wise. |
||
| Drive Type | Imported make Indirect /Direct Connecting Drive selection made depending on the space opening availability, no of operations subjected etc. Drive with integral breaking system with Long life expectancy |
||
| Drive Unit | Electric Motor(Imported Make) Single Phase/Three Phase | ||
| Emergency Operation | Manual operation by Hand chain or hand crank | ||
| Accessories(Optional) can be integrated with advanced control |
|
||
- Hospitals
- Pharmaceuticals
- Aircraft
- Shipyards
- Food Industries
- Retail Malls
- Automobiles
- Logistics
- Chemical Industries
- Residential and Educational Places
