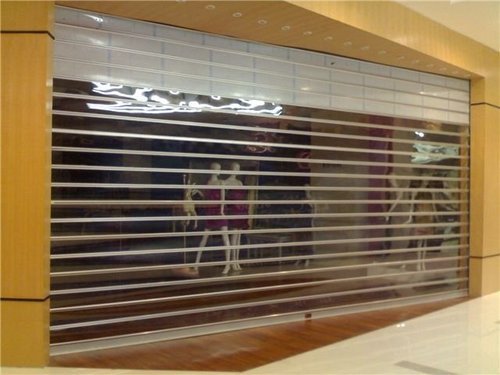

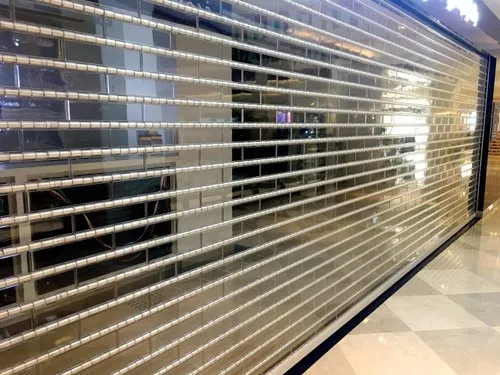

Motorised Acrylic Rolling Shutters
- Acrylic rolling shutters that aid in visibility are commonly utilised in situations where ventilation is essential. And because our building cannot sustain significant weight, these shutters provide full ventilation while keeping our exhibit visible to window shoppers. These shutters are made using high-quality materials. These shutters are developed and designed in accordance with international quality standards, utilising high-grade raw materials.
- All of the shutters we provide are in great demand in the market due to their overall robustness and security. Acrylic roller shutters acquired from market-reliable and verified sources. Before engaging with clients, our skilled quality inspectors evaluate the acrylic rolling shutters for functioning and finishing characteristics.
- Our transparent shutters provide 90% transparency through the opening, which is greater than that of any Perspex or acrylic retail roller shutter. This allows you to promote your products and messages to potential customers around the clock via shop displays and security screens, while your transparent, high security shop shutters secure your business 24 hours a day, seven days a week. Clear roller shutters provide outstanding visibility and security without sacrificing either.
- Our shutters are manufactured from the best quality metals which ensure long lasting performance
- The bottom profile of the door is incorporated with additional stiffeners to provide an additional strength
- Steel, aluminums or stainless steel grill rolling shutters are available in various designs
- Our shutters are manufactured from the best quality metals which ensure long lasting performance
- Our drives have weight carrying capacity until 2500Kgs
- Motorised rolling shutters are self sufficient and can be operated by a single push button
- Our shutters are in-build with high performance drives and intelligent controls
- In case of power failure, these doors can be operated manually using a hand crank or chain drive
- Our Drives are inbuilt with Special Anti Drop device and additional Electromagnetic brake to ensure that the door does not free-fall in any worst conditions
- Finger-tip control to open and close shutters of any size with the utmost ease from a single push-button switch or a radio remote control transmitter
- Noiseless operation and Excellent strength
- Easy installation and Low maintenance
- Our shutters are manufactured from the best quality metals which ensure long lasting performance
- Grill rolling shutters are one of the options that you may choose as your shutter curtain among the many types of roller shutters
- Grill rolling shutters are light but strong and allow air ventilation while ideal for creating a friendly barrier from the outside
PRODUCT |
Motorised Acrylic Rolling Shutter |
||
SHUTTER DIMENSION |
|||
| Width Min./Max. | 1000/3000mm | ||
| Height Min./Max. | 1000/5000mm Max. Area 15.0Sqm Large dimensions on request |
||
| Opening Direction | Vertical | ||
| Mounting Location | Center/Inside | ||
| Opening/Closing Speed | 0.05-0.1mtr /sec | ||
| Mounting Surface | Concrete, Steel | ||
SHUTTER STRUCTURE |
|||
| Slat Material | Acrylic (3 mm thick) | ||
| Slat Profile | Flat profile interlocked by SS linked rods | ||
| Side Guide | Aluminium profile with Rubber inserts on both ends | ||
| Bottom Profile | Aluminium profile with Bottom Rubber sealing | ||
| Roller Shaft | Heavy duty GI Steel strong suspension Tubular shaft without springs | ||
| Side Brackets | M.S plate 3mm to 10mm,as per the opening dimension | ||
| Hood Cover | Galvanized Steel or Stainless Steel sheet | ||
FINISH |
|||
| Surface Finish | Standard Off White Color Special Color on request |
||
DETAILS FOR AUTOMATION SYSTEM |
|||
| Control Type | Casing made of compact impact-resistant material incorporating operating buttons for shutter operation. Specific IP rating provided as per the requirement. Deadman/Pulse Control suggested application wise. |
||
| Drive Type | Imported make Indirect /Direct Connecting Drive selection made depending on the space opening availability, no of operations subjected etc. Drive with integral breaking system with Long life expectancy |
||
| Drive Unit | Electric Motor(Imported Make) Single Phase/Three Phase | ||
| Emergency Operation | Manual operation by Hand chain or hand crank | ||
| Options Available | Perforation In Slat profile Rolling Grill Wicket Door for pedestrian entry Vision windows at human height level |
||
| Accessories(Optional) can be integrated with advanced control |
|
||
- Hospitals
- Pharmaceuticals
- Aircraft
- Shipyards
- Food Industries
- Retail Malls
- Automobiles
- Logistics
- Chemical Industries
- Residential and Educational Places
