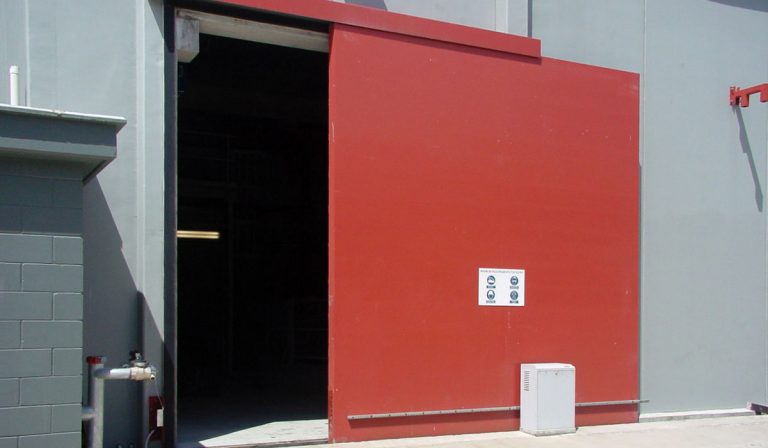

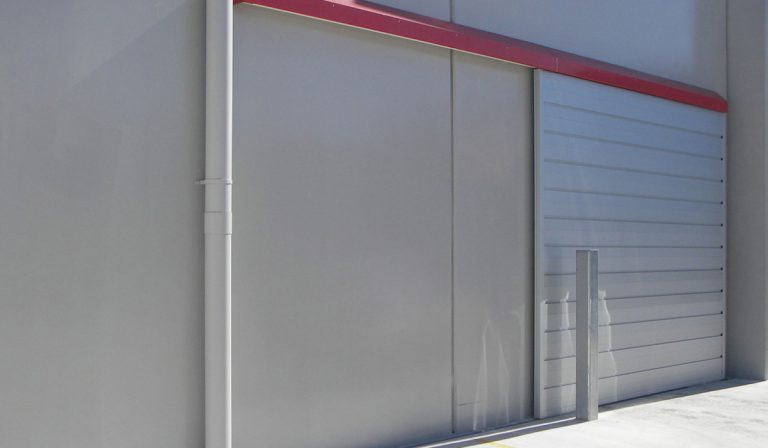

Bottom Mounted Sliding Doors

These hanger doors are appropriate for all door opening widths. As single skin and double skin insulated panels, they come in a variety of various looks. When the weight of the door cannot be supported from above, a top hanging system is preferred; in this situation, a bottom rolling system is advised. These sliding doors operate smoothly and are resistant to heavy wind pressure. There is no dust or dirt on the track.

A bottom guide is a necessary part of a complete sliding door installation. These guides aid in tracking the bottom of the door when it is in operation, as well as in the closed and open positions. Bottom rollers are incorporated into the frame of the door or gate and are intended to support the whole weight of the door as it rolls along the floor track. To keep the door from tipping over at the top, a top guide system is installed. These doors are offered with bottom mounted Italian or Indian motorised system operation, featuring safety edges and photocells. These sliding doors include high accuracy rollers and bearings. Highly impact and corrosion resistant.

FEATURES

Track sections are cold rolled from high grade galvanised or steel strip and are supplied in four sizes in standard lengths
Available as motorized operated with bottom mounted Italian make motorized system.
Heavy duty bottom track & top mounted guiding track for sliding operation of the door.
Bottom roller assembly& top track roller bracket assembly designed for linear motion & top support for the door.
Wicket door for easy access may be incorporated into a sliding door
Designed to accommodate for different industrial building designs, doors can slide to one or both sides
At each end, a track stopper is placed to absorb any impact and to hold the door in the open or closed position
Additional guides at the bottom prevent the door from oscillation
Interlocking facility between two doors
Doors can be constructed with vertical EPDM rubber seal to prevent dust and provide complete sealing
The sliding door gear range is designed for continuous hard wearing use with sliding doors up to 3000Kgs
A total safety system, automatic sliding doors are designed to meet all operational & safety needs
Unlimited widths for manually operated ‘push along’ doors
Quick release disengaging mechanism inside sliding doors enables changeover to manual operation in case of power failure
These sliding doors can be locked in open or closed position
Control to stop anytime while garage door is moving
Infrared sensor system reverses the direction of the door if any obstruction cuts across the invisible light beam
