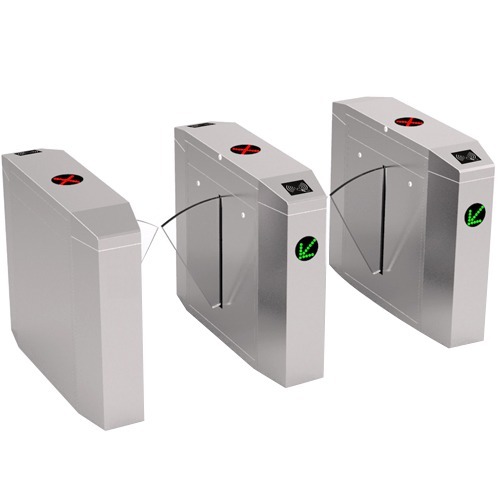

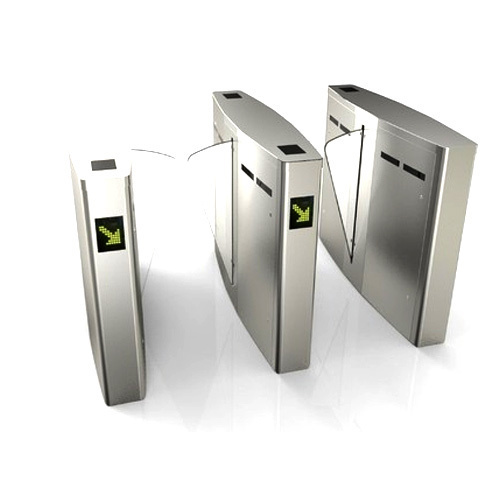

Automatic Motorised Flap Barrier
- The clever Flap barrier is one of our company’s serial products in the intelligent passage management system. It has unparalleled superiority over the usual management approach. The closure time can be changed starting at 018 seconds. When it senses someone or something after the gate, it will immediately stop. When the obstruction is removed, it will open then close, with a delay period of 0-18 seconds. The door may also be opened with a push button or an access control system.
- The gate may be positioned at the entry and configured to only open in one direction. In an emergency situation, such as a fire escape, you can push the gate open in the other direction while the indicator light flashes with the alert. If the gate is obstructed during the opening process, it will try to open and close three times automatically. If the gate still can’t get rid of the faults, it will go into sleep mode until it is manually recovered to closed status (the position is 0 degree), at which point the gate’s auto adjust / control can be activated.
- Self-examining and alarm
- Little noise or mechanical impact for pedestrians
- Multiple usage options within control menu are below. The unit is directional and can be locked
- Fail safe with power loss. Barrier will automatically open
- Standard electrical interface to connect and security card or proximity readers. Can be Factory fitted or at site by your security contractor
- Automatic Counter of movements is included. An optional LED display is available to show the Count at all times if required. This is great for tallying periodic movements by local staff
- Top mounted LED display shows passing directions authorized
- Easy installation and Free maintenance
- Can be integrated with all types of access control panel
- Offering complete entrance control solutions
- Suitable for manning entries for controlling entrances
- Provide normally open / normally close to satisfy management request
- Compatible with RF card readers, bar code readers, biometric readers, push button
- Equipped with infrared photocell, alarm while unauthorized entry or tailgating attempts, together with anti-strike function to protect pedestrian
- Expanded to automatic identification system, access control system, Traffic control, attendance check and fare collection system etc…
- Automatically reset : lock automatically while the pedestrian not pass the lane in the pre-set time after the flap opened. The passing time is adjustable
- Equipped with international interface, can be easily integrated with other R/W device and managed through remote supervision computer
- (Optional) Support gate open while power failure and recover N/C mode after power on
- (Optional) Memory function. Can pass N pedestrians continuously by swiping card N times correspondingly (N<=16)
- (Optional) Reversed passing alarm function, barrier will alarm if pedestrian pass from opposite direction after reading the card
- One direction or bi-direction is optional
PRODUCT |
Retractable Flap Barrier |
||
PRODUCT DETAILS |
|||
| Dimensions | 1200 x 280 x 980 mm | ||
| Operation | Bi-Directional | ||
| Mounting Location | Inside/Outside | ||
FLAP DETAILS |
|||
| Finish | Stainless steel finish to Grade 4(Satin Finish)/ Powder coated in structured finish | ||
| Through Out | 30 persons/min | ||
| Unlock Time | 0.2 s | ||
| Pass Width | ≤550mm | ||
| Temperature Range | -25⁰C to +70⁰C | ||
| Flap material | Plastic plate, toughnend glass | ||
DRIVE UNIT DETAILS |
|||
| Drive Unit | Blockable Torque Motor with constant torque output & built in thermal protection | ||
| Power Supply | 230+/-VAC, 50 Hz | ||
| Emergency operation | Manual operation for opening. Also can be configured for Flaps to remain closed during power failure | ||
| Options Available | Any type of Customized automation can be made on request | ||
FINISH |
|||
| Surface Finish | Standard Finish | ||
DETAILS FOR AUTOMATION SYSTEM |
|||
| Drive Unit | Imported make electromechanical drive having features such as powerful startup & thermal sensors Single( D.C ) |
||
| Emergency Operation | Manual release knob | ||
| Accessories |
|
||
- Hospitals
- Pharmaceuticals
- Aircraft
- Shipyards
- Food Industries
- Retail Malls
- Automobiles
- Logistics
- Chemical Industries
- Residential and Educational Places
